STEP 08 / 12 Decoration Model YS05

Printing Machine

Patterns are printed onto coated aluminium tubes via offset printing and the ink is thermally cured. This high-speed process delivers crisp, vivid multi-colour prints with strong adhesion.

Request a quote for this machine See it in the full line

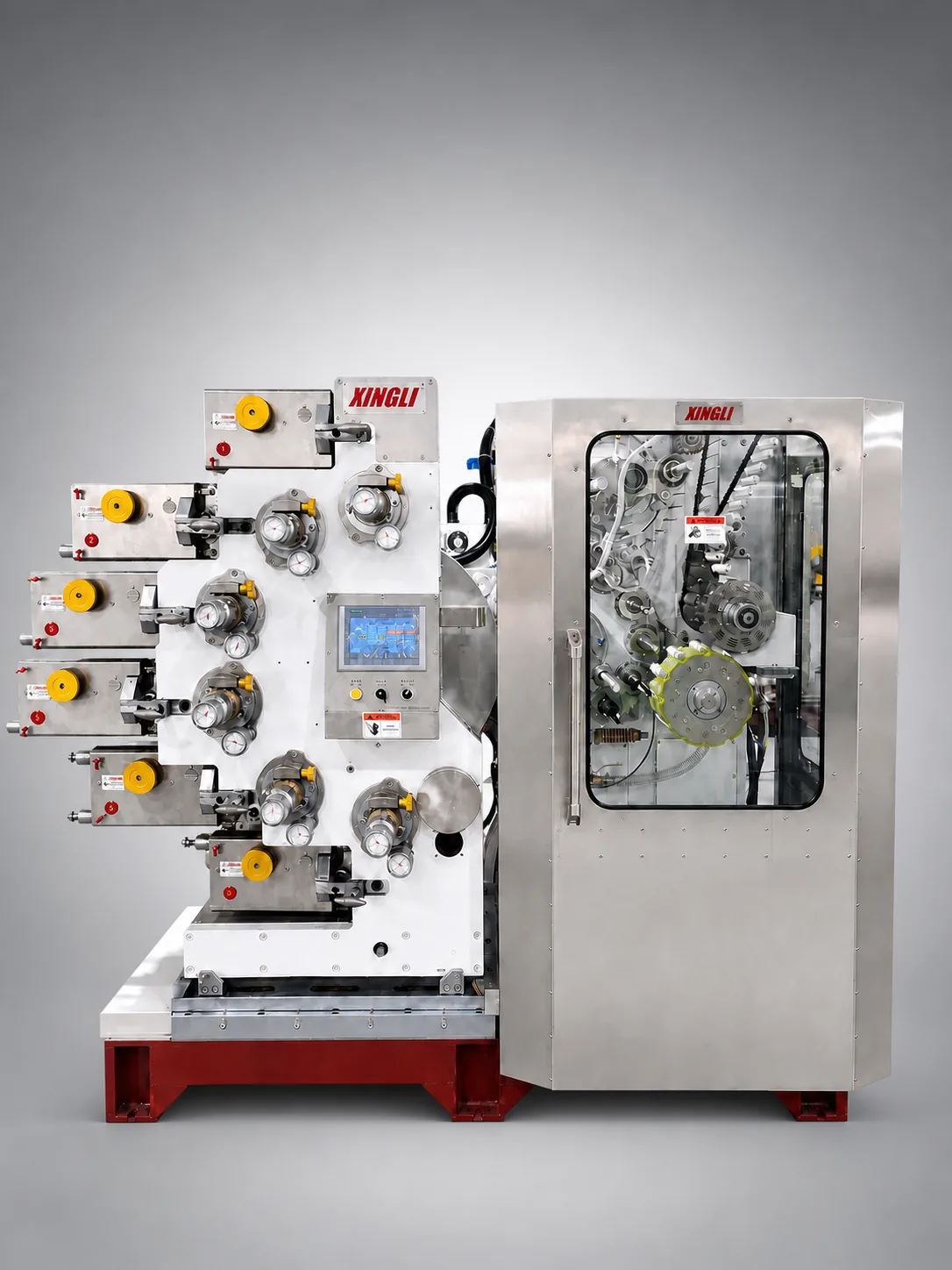

XUNTANG Printing Machine — real machine photo

Why this machine

Core advantages

High printing precision delivers clear, vivid patterns
Stable operation adapts to high-speed tube production
Fast colour and plate replacement boosts efficiency
Even ink distribution — no smudging or missed printing
User-friendly operation with reliable long-term performance

High outputEnergy savingSafe & stableHigh precision

Technical parameters

Printing Machine — YS05

Two build sizes cover the large-format and small-format tube ranges. Figures are catalogue references, confirmed against your order.

Parameter	Large model	Small model
Tube diameter	Ø 19 – 35 mm	Ø 13.5 – 25 mm
Tube length	110 – 200 mm	70 – 145 mm
Production speed	85 pcs/min	95 pcs/min
Number of colours	6 colours
Control system	PLC + HMI
Ink supply	PLC control
Oven power	42 kW
Single-machine power	7.92 kW	6.82 kW
Operating voltage	3-phase 5-wire / 380 V / 80 A
Working air pressure	0.68 MPa
Oven dimensions (L×W×H)	2410 × 822 × 1980 mm	2410 × 755 × 1680 mm
Dimensions	3150 × 2250 × 4433 mm
Weight	6300 kg
Mould change time	3 hours

How it works

Equipment description

The base-coated tube body is printed with patterns using offset printing technology. After printing, thermal curing forms a uniform, firmly adhered ink layer on the tube surface. The process enables high-volume, high-speed production of sharp, clear graphics with rich multi-layer colour effects.

Where it sits in the line

← STEP 07 Base Coating Machine Lays an even base coat over the tube exterior — a clean, durable printing ground. STEP 09 → Leak Detector Continuous airtight testing sorts out micro-leaks without slowing the line.

All 12 machines

Buyer questions

Selection notes for Printing Machine

What does the Printing Machine do in an aluminium tube production line?

Printing Machine (YS05) is step 8 of the XUNTANG collapsible aluminium tube production line. Patterns are printed onto coated aluminium tubes via offset printing and the ink is thermally cured. This high-speed process delivers crisp, vivid multi-colour prints with strong adhesion.

When should buyers pay special attention to the Printing Machine?

Printing Machine is usually reviewed when buyers confirm tube diameter, tube length, target output, line balance and the upstream or downstream station requirements around the decoration stage. XUNTANG confirms the final configuration against the buyer's tube specification and workshop layout before quotation.

Can the Printing Machine be supplied alone or only as part of a complete line?

The Printing Machine can be discussed as a station in a new turnkey line or as part of an upgrade discussion for an existing aluminium tube line. Buyers should provide current machine photos, tube size range, output target and any quality issue they want to solve so the configuration can be checked without guessing.
