STEP 09 / 12 Inspection Model CL02

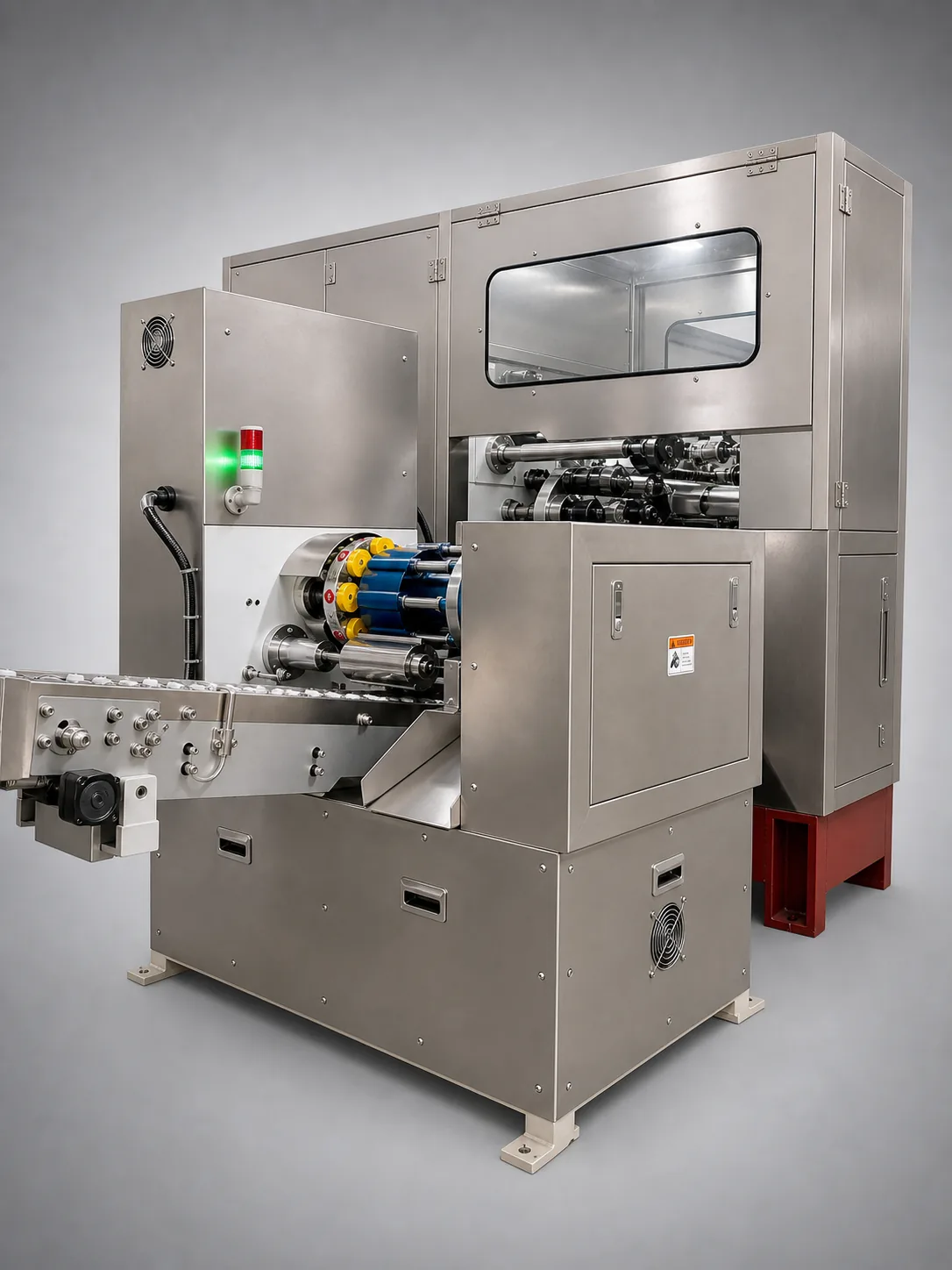

Leak Detector
Full airtight testing runs while the aluminium tubes move continuously. Optimised test time and precise detection secure qualified tightness without slowing line productivity.
Why this machine
Core advantages
- High precision for micro-leak detection
- Fast response and stable performance for production lines
- Automatic sorting design saves labour cost
- Durable and reliable for long-term continuous operation
- User-friendly operation and easy line integration
High outputEnergy savingSafe & stableHigh precision
Technical parameters
Leak Detector — CL02
Two build sizes cover the large-format and small-format tube ranges. Figures are catalogue references, confirmed against your order.
| Parameter | Large model | Small model |
|---|---|---|
| Tube diameter | Ø 19 – 35 mm | Ø 13.5 – 25 mm |
| Tube length | 110 – 200 mm | 70 – 145 mm |
| Production speed | 85 pcs/min | 95 pcs/min |
| Test pressure | 0.2–0.4 MPa | |
| Detection principle | Air-tightness test | |
| Power supply | 3-phase 3-wire / 380 V / 16 A | |
| Power | 1.6 kW | 2.2 kW |
| Working air pressure | 0.68 MPa | |
| Control mode | PLC + HMI | |
| Dimensions | 650 × 1250 × 1402 mm | |
| Weight | ≈ 300 kg | |
How it works
Equipment description
Continuous air-tightness inspection is carried out as the aluminium tubes are conveyed. Optimised testing cycles and high-precision detection ensure all tubes comply with tightness standards while the line keeps running at full production efficiency.
Buyer questions
Selection notes for Leak Detector
What does the Leak Detector do in an aluminium tube production line?
Leak Detector (CL02) is step 9 of the XUNTANG collapsible aluminium tube production line. Full airtight testing runs while the aluminium tubes move continuously. Optimised test time and precise detection secure qualified tightness without slowing line productivity.
When should buyers pay special attention to the Leak Detector?
Leak Detector is usually reviewed when buyers confirm tube diameter, tube length, target output, line balance and the upstream or downstream station requirements around the inspection stage. XUNTANG confirms the final configuration against the buyer's tube specification and workshop layout before quotation.
Can the Leak Detector be supplied alone or only as part of a complete line?
The Leak Detector can be discussed as a station in a new turnkey line or as part of an upgrade discussion for an existing aluminium tube line. Buyers should provide current machine photos, tube size range, output target and any quality issue they want to solve so the configuration can be checked without guessing.
Need the Leak Detector — on its own or as part of a line?
Tell us your tube size and output and we'll confirm the right build size and configuration.
