STEP 01 / 12 Forming Model JA04 / JA05

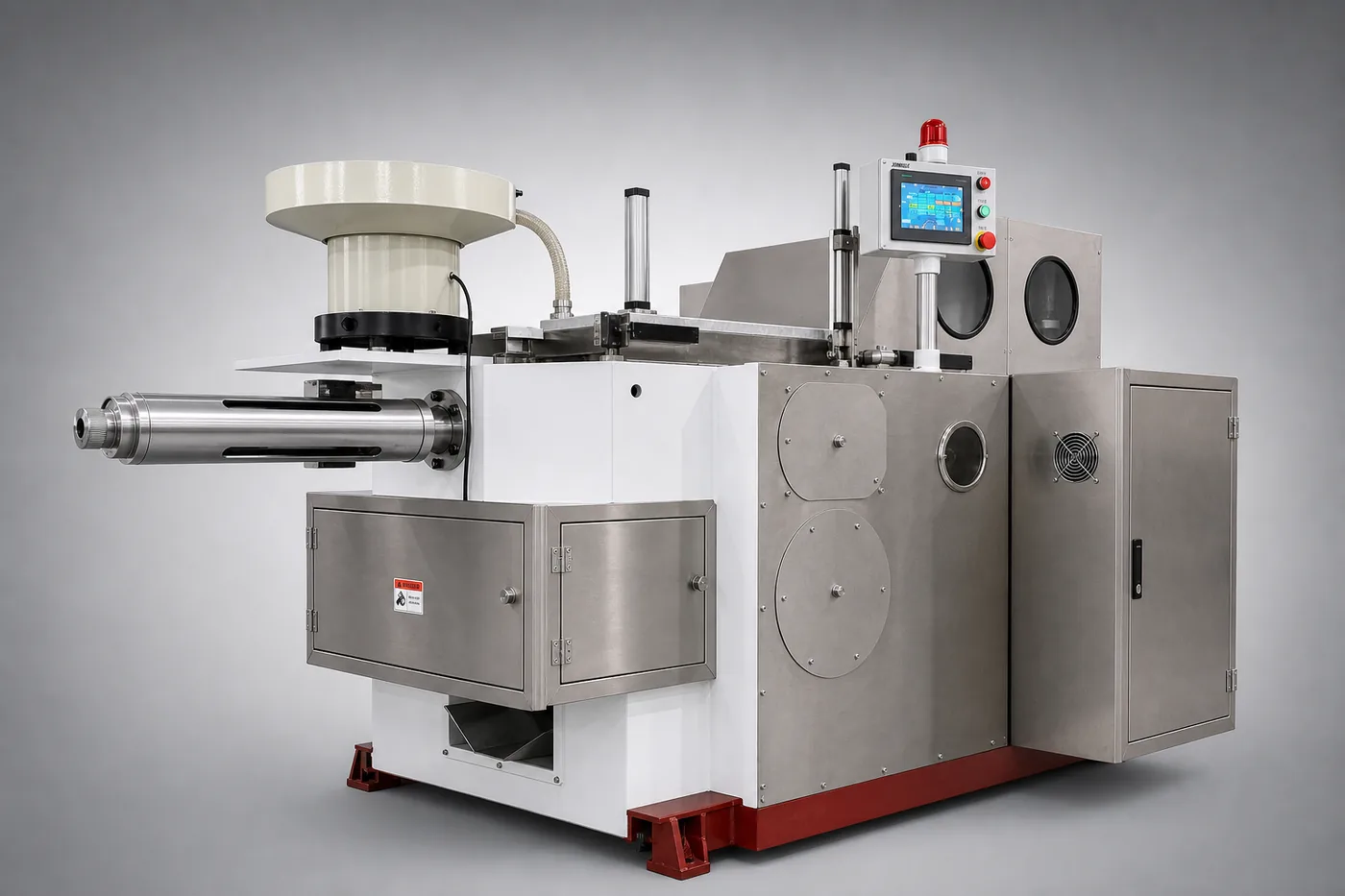

Extrusion Press
In the tube punching process, the extrusion press forms the aluminium discs — pre-lubricated with zinc stearate powder — into aluminium tube blanks in one step through the impact-extrusion process.
Why this machine
Core advantages
- Compact structure with a small footprint
- Easy and efficient die replacement
- Stable and reliable operating speed
- Robust and stable overall press frame
- Customizable solutions to meet specific requirements
High outputEnergy savingSafe & stableHigh precision
Technical parameters
Extrusion Press — JA04 / JA05
Two build sizes cover the large-format and small-format tube ranges. Figures are catalogue references, confirmed against your order.
| Parameter | Large model | Small model |
|---|---|---|
| Material | Aluminium | |
| Tube diameter | Ø 19 – 35 mm | Ø 13.5 – 25 mm |
| Tube length | 110 – 200 mm | 70 – 145 mm |
| Max output | 100 pcs/min | |
| Rated output | 85 pcs/min | 95 pcs/min |
| Press force | 160 T | 80 T |
| Stroke | 350 mm | 260 mm |
| Stroke rate | 95 spm | 100 spm |
| Installed power | 11.75 kW / 380 V | 6.25 kW / 380 V |
| Power supply | 3-phase 5-wire / 380 V / 32 A | |
| Air pressure | 0.6–0.79 MPa | |
| Control system | PLC + touch screen | |
| Feeding system | Vibrating bowl feeder | |
| Dimensions | 1020 × 3944 × 1720 mm | 950 × 3316 × 1680 mm |
| Net weight | ≈ 6500 kg | ≈ 5300 kg |
| Die change time | 30 min | |
How it works
Equipment description
In the tube punching production process the extrusion press adopts one-step impact-extrusion moulding. Aluminium discs pre-treated with zinc stearate powder for surface lubrication are processed and fabricated into standard aluminium tube blanks.
Buyer questions
Selection notes for Extrusion Press
What does the Extrusion Press do in an aluminium tube production line?
Extrusion Press (JA04 / JA05) is step 1 of the XUNTANG collapsible aluminium tube production line. In the tube punching process, the extrusion press forms the aluminium discs — pre-lubricated with zinc stearate powder — into aluminium tube blanks in one step through the impact-extrusion process.
When should buyers pay special attention to the Extrusion Press?
Extrusion Press is usually reviewed when buyers confirm tube diameter, tube length, target output, line balance and the upstream or downstream station requirements around the forming stage. XUNTANG confirms the final configuration against the buyer's tube specification and workshop layout before quotation.
Can the Extrusion Press be supplied alone or only as part of a complete line?
The Extrusion Press can be discussed as a station in a new turnkey line or as part of an upgrade discussion for an existing aluminium tube line. Buyers should provide current machine photos, tube size range, output target and any quality issue they want to solve so the configuration can be checked without guessing.
Need the Extrusion Press — on its own or as part of a line?
Tell us your tube size and output and we'll confirm the right build size and configuration.
