STEP 05 / 12 Coating Model PT02

Internal Coating Machine

Annealed aluminium tube inner walls are coated with special lining paint, then baked in a curing oven to form a chemically stable protective film. The film separates the tube contents from the aluminium base to avoid chemical reactions, giving durable chemical protection.

Request a quote for this machine See it in the full line

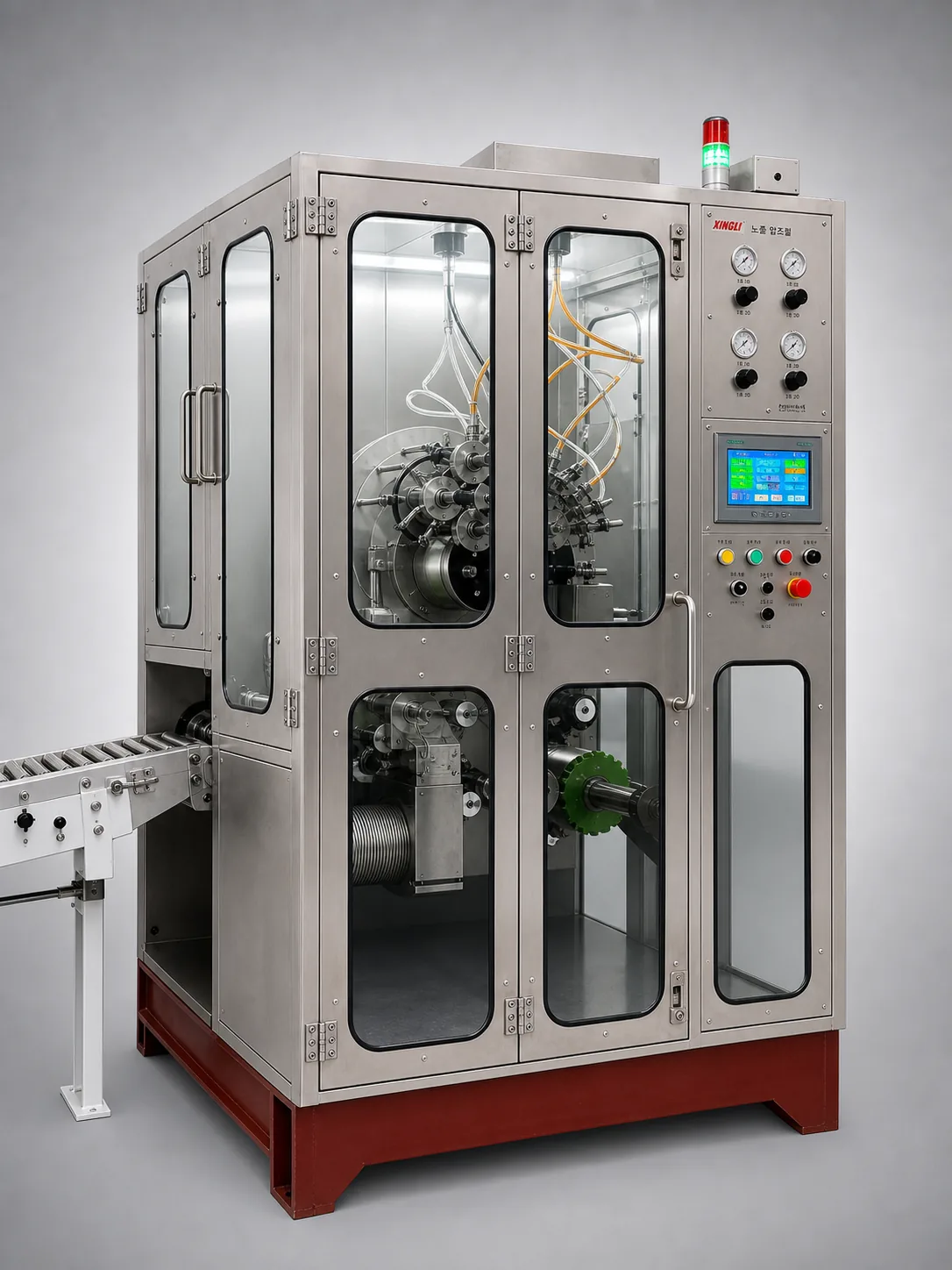

XUNTANG Internal Coating Machine — real machine photo

Why this machine

Core advantages

  • Servo positioning gives uniform full coating — no voids, buildup or sagging
  • Multi-spec compatible with fast mould change for custom production
  • Premium core parts: low failure rate, simple maintenance, minimal downtime
  • Optional spray-gun configuration: 2 + 4 or 2 + 6
  • Well-matched line speed, low power use, high material yield
  • Safe and reliable equipment
High outputEnergy savingSafe & stableHigh precision

Technical parameters

Internal Coating Machine — PT02

Two build sizes cover the large-format and small-format tube ranges. Figures are catalogue references, confirmed against your order.

ParameterLarge modelSmall model
Tube diameterØ 19 – 35 mmØ 13.5 – 25 mm
Tube length110 – 200 mm70 – 145 mm
Production speed85 pcs/min95 pcs/min
Design speed120 pcs/min
Coating methodSpraying
Coating thicknessAccording to customer requirements
Feeding methodCable chain
Control modePLC + HMI
Power7.65 kW · 3-phase 5-wire / 380 V / 32 A
Air supply0.6 MPa
Dimensions1310 × 2158 × 2572 mm
Weight≈ 3200 kg
Mould change time2 hours

How it works

Equipment description

Special coating is sprayed onto the inner walls of annealed aluminium tubes and cured in an oven to create a stable protective film. It insulates the media from the aluminium substrate, avoids chemical reactions and delivers lasting chemical resistance.

Where it sits in the line

← STEP 04 Buffer Accumulator Cools and buffers tubes on-line to synchronise upstream and downstream pace. STEP 06 → Curing Oven Suspended oven cures the internal coating with precise, uniform heat.
All 12 machines

Buyer questions

Selection notes for Internal Coating Machine

What does the Internal Coating Machine do in an aluminium tube production line?
Internal Coating Machine (PT02) is step 5 of the XUNTANG collapsible aluminium tube production line. Annealed aluminium tube inner walls are coated with special lining paint, then baked in a curing oven to form a chemically stable protective film. The film separates the tube contents from the aluminium base to avoid chemical reactions, giving durable chemical protection.
When should buyers pay special attention to the Internal Coating Machine?
Internal Coating Machine is usually reviewed when buyers confirm tube diameter, tube length, target output, line balance and the upstream or downstream station requirements around the coating stage. XUNTANG confirms the final configuration against the buyer's tube specification and workshop layout before quotation.
Can the Internal Coating Machine be supplied alone or only as part of a complete line?
The Internal Coating Machine can be discussed as a station in a new turnkey line or as part of an upgrade discussion for an existing aluminium tube line. Buyers should provide current machine photos, tube size range, output target and any quality issue they want to solve so the configuration can be checked without guessing.

Need the Internal Coating Machine — on its own or as part of a line?

Tell us your tube size and output and we'll confirm the right build size and configuration.
